Modern automotive manufacturing increasingly relies on advanced die casting technologies to produce large, complex structural components with high efficiency.
In large-scale aluminum die casting—such as the processes used in next-generation automotive production—tooling reliability and precision are critical.
One key challenge is the secure fixation of core pins and ejector pins, which must remain stable under thermal stress, vibration, and repeated production cycles.
HARDLOCK® Set Screw is used in die casting applications, including advanced automotive manufacturing environments, to provide secure, anti-loosening fixation of critical mold components.
Why Fastening Matters in Die Casting Processes
In die casting molds, precise positioning of internal components is essential for:
- Dimensional accuracy of cast parts
- Surface quality and structural integrity
- Repeatability across high-volume production
Key elements requiring secure fastening include:
- Core pins (defining internal geometry)
- Ejector pins (removing cast parts from molds)
- Mold inserts and positioning elements
These components must remain perfectly aligned during thousands of production cycles.
The Challenge: Extreme Conditions in Die Casting Machines
Die casting environments combine multiple stress factors that directly impact fastening reliability.
Thermal Stress and High Temperatures
During operation:
- Molten aluminum is injected into the mold
- Rapid heating and cooling cycles occur
- Thermal expansion affects both molds and fasteners
This can reduce preload and lead to loosening.
Repeated Mechanical Cycles
Die casting is a high-frequency process:
- Continuous injection cycles
- Repeated opening and closing of molds
- Mechanical shocks during ejection
These dynamic loads can gradually loosen conventional set screws.
Vibration and Impact Forces
Large die casting machines generate:
- Vibration from injection pressure
- Impact during mold closure and part ejection
- Dynamic stress on internal components
Precision Requirements
Even slight movement of pins can result in:
- Dimensional inaccuracies
- Defects in cast components
- Increased scrap rates
Maintenance and Tooling Downtime
Traditional solutions often involve:
- Frequent inspection of pin fixation
- Retightening or replacement
- Complex disassembly procedures
This increases downtime and operational cost.
Real-World Use Case: Fixation of Core Pins in Automotive Die Casting
In advanced die casting environments (including large-scale automotive production), HARDLOCK® Set Screw is used to:
- Secure core pins in precise positions
- Fix ejector pins without damaging the mold
- Maintain alignment under repeated cycles
Unlike traditional methods:
- Welding can damage mold integrity
- Conventional screws may loosen under vibration
- Mechanical locking systems may be complex
HARDLOCK® Set Screw provides a simple, reusable, and secure solution for pin fixation, widely adopted in die casting and injection molding applications ()
Why Preload Stability Is Critical in Die Casting
Maintaining preload ensures:
- Accurate positioning of pins
- Consistent part quality
- Reduced wear on tooling
Loss of preload can lead to:
- Pin movement and misalignment
- Increased defect rates
- Tool damage and costly downtime
HARDLOCK® Set Screw: Mechanical Locking for Precision Tooling

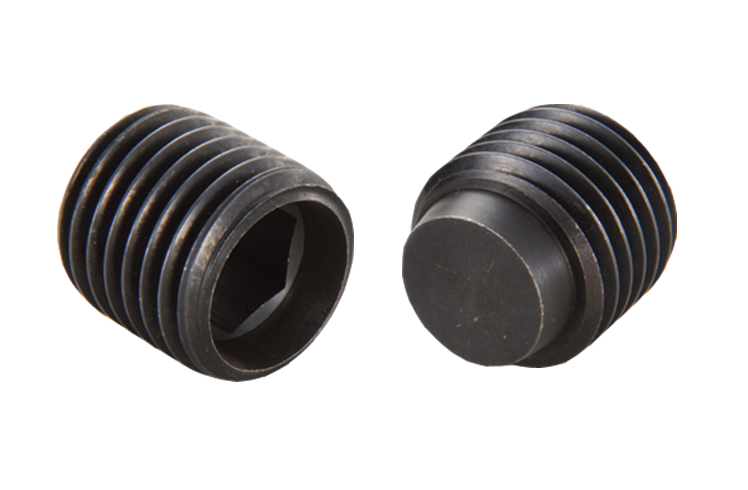

HARDLOCK® Set Screw uses a mechanical wedge-locking principle to prevent loosening under extreme conditions.
How it works:
- Two set screws (concave + convex) create a locking system
- An eccentric interface generates radial locking force
- This eliminates play and prevents rotation
This design ensures:
- Stable fixation of pins
- Resistance to vibration and impact
- Long-term reliability without retightening
The system is specifically designed to lock core pins and ejector pins in place, even under severe vibration and repeated cycles ()
Where HARDLOCK® Set Screw Is Used in Die Casting
Typical applications include:
- Automotive die casting molds (aluminum structural parts)
- Large-scale casting systems (e.g., giga casting processes)
- Injection molding machines
- High-precision tooling systems
These are environments where precision and reliability directly affect production output.
Key Benefits for Automotive Die Casting Applications
✔ Prevents Loosening Under Thermal and Mechanical Stress
Maintains clamping force despite temperature changes and cyclic loading.
✔ Ensures High Precision and Product Quality
Stable pin positioning supports:
- Dimensional accuracy
- Reduced defect rates
- Consistent production quality
✔ Reduces Tooling Damage and Extends Mold Life
Secure fixation helps prevent:
- Wear caused by micro-movements
- Damage to mold structures
- Premature tooling failure
✔ Reduces Maintenance and Downtime
HARDLOCK® Set Screw enables:
- Faster installation and removal
- Reduced need for retightening
- Lower maintenance costs
✔ Reusable and Cost-Efficient Solution
All-metal design allows:
- Repeated use without performance loss
- Lower total cost of ownership
Comparison with Conventional Pin Fixing Methods
Traditional solutions include:
- Standard set screws
- Welding or mechanical locking systems
- Friction-based fastening
Limitations:
- Loosening under vibration and thermal cycles
- Difficult maintenance and replacement
- Potential damage to molds
HARDLOCK® Set Screw provides a mechanical anti-loosening solution independent of friction, improving both reliability and serviceability.
Engineering Perspective: Cost of Failure in Die Casting
In high-volume automotive production, fastening reliability directly impacts:
- Production efficiency
- Scrap rates
- Tooling costs
Failure of pin fixation can result in:
- Production stoppages
- Defective parts
- Increased maintenance
Reliable fastening solutions help optimize manufacturing performance.
Related Applications in Industrial Manufacturing
Similar challenges exist in:
- Die Casting Machines → https://www.hardlock.eu/hardlock-set-screw-in-die-casting-machines/
- Steel production lines → https://www.hardlock.eu/hardlock-bearing-nut-in-steel-making-lines/
- Injection Molding Machines → https://www.hardlock.eu/hardlock-bearing-nut-on-injection-molding-machines/
👉 Explore full application range:
https://www.hardlock.eu/where-is-hardlock-nut-often-used/
When to Use HARDLOCK® Set Screw in Die Casting
Consider this solution if your application involves:
- Precision pin positioning
- High thermal and mechanical stress
- Repeated production cycles
- High cost of downtime
Conclusion
Advanced die casting processes require fastening solutions that ensure precision, durability, and long-term reliability.
By maintaining preload and preventing loosening, HARDLOCK® Set Screw provides a mechanical solution for secure fixation of core and ejector pins in high-performance manufacturing environments.
Looking to Improve Die Casting Efficiency?
Choosing the right fastening solution can reduce downtime, improve product quality, and extend tooling life.
👉 Start with the fundamentals:
https://www.hardlock.eu/why-do-bolts-nuts-come-loose-factors-influencing-bolt-preload-loss/
