HARDLOCK® Nut on Arch Fenders

14. 12. 2020
News

Arch fenders are critical components in port and marine infrastructure, designed to absorb the impact energy of vessels during berthing operations.

These systems protect both ships and quay structures by withstanding repeated impact loads, compression forces, and harsh environmental conditions.

In such demanding applications, fastening reliability is essential to ensure structural integrity, operational safety, and long-term durability.

HARDLOCK® Nut is used on arch fender systems to provide secure, anti-loosening fastening for critical connections, ensuring reliable performance in marine environments.

Why Fastening Matters in Arch Fender Systems

Arch fender systems rely on bolted connections in:

  • Fender-to-panel mounting
  • Fender-to-quay wall anchoring
  • Steel frame and support structures
  • Energy-absorbing rubber unit fixation

These connections must ensure:

  • Safe transfer of impact forces
  • Stable positioning of fender units
  • Long-term structural reliability

The Challenge: Extreme Marine and Impact Conditions

Arch fenders operate in one of the harshest engineering environments.

Repeated Impact Loads from Vessels

During berthing operations:

  • Ships apply high impact forces to fender systems
  • Loads are dynamic and vary depending on vessel size and speed
  • Repeated impacts create cyclic stress in bolted joints

These forces can gradually loosen conventional fasteners.

Cyclic Compression and Recovery

Arch fenders are designed to:

  • Compress under load
  • Recover their shape after impact

This repeated deformation introduces:

  • Cyclic loading
  • Micro-movements at connection points
  • Gradual preload loss

Vibration and Structural Movement

Marine structures experience:

  • Vibration from vessel movement
  • Wave-induced motion
  • Structural flexing of quay walls

These dynamic effects contribute to bolt loosening over time.

Corrosion in Marine Environments

Arch fender systems are exposed to:

  • Saltwater and humidity
  • Marine atmosphere and corrosion
  • Temperature fluctuations

Fastening systems must maintain performance despite aggressive corrosion conditions.

Long Service Life and Limited Maintenance Access

Port infrastructure requires:

  • Decades of reliable operation
  • Minimal maintenance interruptions
  • High safety standards

Loose fasteners can lead to:

  • Reduced impact absorption performance
  • Structural damage
  • Increased maintenance costs

👉 Learn more about preload loss:
https://www.hardlock.eu/why-do-bolts-nuts-come-loose-factors-influencing-bolt-preload-loss/

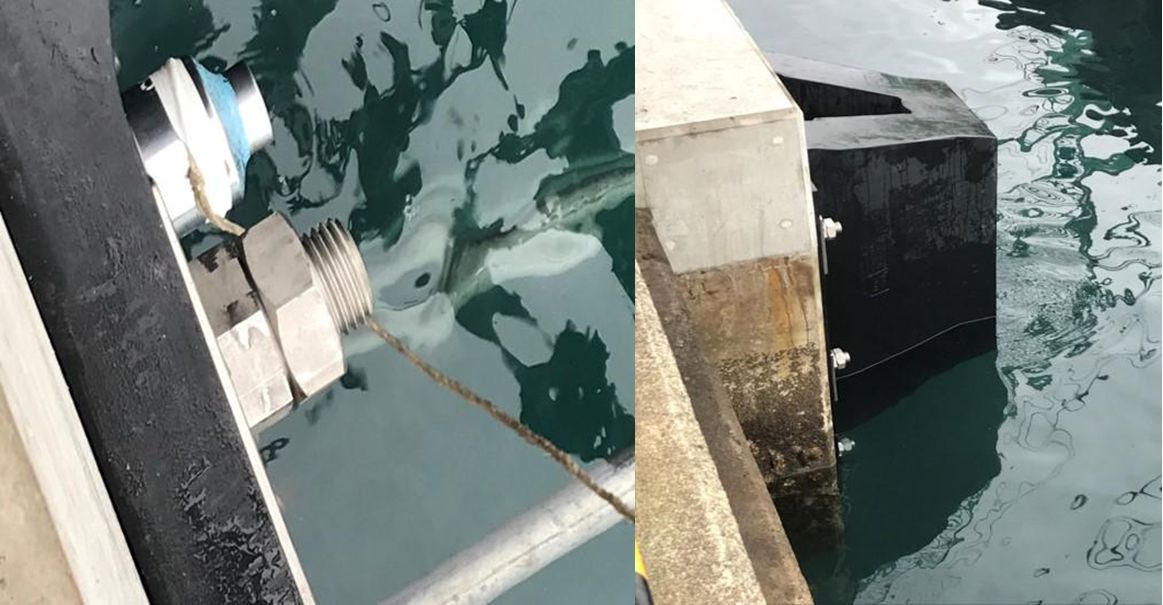

Real-World Use Case: Arch Fender Mounting and Structural Connections

In marine applications, HARDLOCK® Nut is used to secure:

  • Arch fender units to steel panels
  • Fender systems to quay structures
  • Structural support frames

These applications are critical because:

  • Impact forces must be safely transferred to the structure
  • Fender systems must remain securely fixed
  • Maintenance access is often difficult

Conventional fastening solutions may loosen due to repeated impacts and environmental stress.

HARDLOCK® Nut helps maintain stable preload and secure fastening, ensuring reliable long-term performance.

Why Preload Stability Is Critical

Maintaining preload ensures:

  • Secure attachment of fender systems
  • Efficient energy absorption
  • Stable structural performance

Loss of preload can lead to:

  • Movement of fender units
  • Reduced impact absorption efficiency
  • Increased stress on structural components

HARDLOCK® Nut: Mechanical Locking for Marine Applications

HARDLOCK® Nut uses a mechanical wedge-locking principle that prevents loosening under extreme conditions.

How it works:

  • Two nuts (convex + concave) form a locking system
  • An eccentric interface generates radial locking force
  • This eliminates thread clearance and prevents rotation

This ensures reliable performance under:

  • Repeated impact loads
  • Cyclic compression
  • Vibration and structural movement
  • Marine environmental exposure

👉 Full technical explanation:
https://www.hardlock.eu/why-the-hardlock-nut-does-not-loosen/

Where HARDLOCK® Nut Is Used in Arch Fender Systems

Typical applications include:

  • Port and harbor infrastructure
  • Quay walls and docking facilities
  • Marine terminals and industrial ports
  • Offshore and coastal installations

These are areas where fastener failure can have significant safety and cost implications.

Key Benefits for Marine Fender Applications

✔ Prevents Loosening Under Repeated Impact

Maintains clamping force despite cyclic impact loads and deformation.

✔ Enhances Safety of Berthing Operations

Secure fastening supports:

  • Reliable energy absorption
  • Stable fender positioning
  • Safe vessel docking

✔ Reduces Maintenance and Lifecycle Costs

Reliable fastening helps:

  • Minimize inspections and retightening
  • Reduce maintenance interventions
  • Improve long-term cost efficiency

✔ Improves Structural Durability

Stable connections reduce:

  • Fatigue effects
  • Structural stress concentration
  • Wear over time

✔ Suitable for Harsh Marine Environments

Designed for:

  • Corrosion-prone conditions
  • Continuous environmental exposure
  • Long service life

Comparison with Conventional Fastening Methods

Traditional fastening solutions rely on friction or deformation.

Limitations:

  • Loosening under impact and vibration
  • Reduced effectiveness over time
  • Increased maintenance requirements

HARDLOCK® Nut provides a mechanical anti-loosening solution independent of friction, ensuring stable long-term performance.

👉 Compare fastening technologies:

Engineering Perspective: Cost of Failure in Marine Infrastructure

In port infrastructure, fastening reliability directly impacts:

  • Operational safety
  • Infrastructure lifespan
  • Maintenance costs

Failure of bolted joints can result in:

  • Reduced fender performance
  • Structural damage
  • Increased operational risk

Reliable fastening solutions help minimize these risks.

👉 Learn more about benefits:
https://www.hardlock.eu/hardlock-nut-main-benefits/

Related Applications in Marine and Infrastructure Systems

Similar challenges exist in:

👉 Explore full application range:
https://www.hardlock.eu/where-is-hardlock-nut-often-used/

When to Use HARDLOCK® Nut in Arch Fender Systems

Consider this solution if your application involves:

  • Repeated impact loading
  • Marine or corrosive environments
  • Long-term structural fastening
  • High cost of maintenance or failure

Conclusion

Arch fender systems require fastening solutions capable of withstanding extreme impact forces, environmental exposure, and long-term cyclic loading.

By maintaining preload and preventing loosening, HARDLOCK® Nut provides a mechanical solution for secure fastening in marine impact protection systems.

Looking to Improve Marine Infrastructure Reliability?

Choosing the right fastening system can reduce maintenance, improve safety, and ensure long-term structural performance.
