29. 4. 2026

Mining Locking Nuts for Mining Equipment: HARDLOCK® Anti-Loosening Solution

Mining locking nuts are essential for securing bolted joints exposed to continuous vibration, impact loads, abrasive dust and difficult maintenance conditions.

Mining machinery operates in one of the harshest industrial environments. Vibrating screens, crushers, breakers, conveyors, off-road trucks and bucket wheel excavators are exposed to severe dynamic forces every day.

In these conditions, even correctly tightened bolts can gradually loosen. For mining operators, OEM manufacturers and maintenance teams, bolt loosening can lead to unplanned downtime, repeated re-tightening work, damaged components, safety risks and higher lifecycle cost.

This is why mechanical anti-loosening solutions such as HARDLOCK® nuts are increasingly used as mining locking nuts in vibration-critical applications.

For a broader overview of use cases, see:
Mining and Earth Moving Applications

For general fastener performance requirements, engineers may also refer to external standards such as ISO 898-2 mechanical properties of fasteners.

Why Mining Locking Nuts Matter in Heavy Equipment

Mining equipment is not exposed to simple static loads. It operates under repeated shock, vibration, dust, contamination and heavy mechanical stress.

Typical causes of loosening include:

continuous vibration from screens and crushers
impact loads from ore, rock and aggregate processing
cyclic loading in rotating equipment
deformation and wear of contact surfaces
difficult access for inspection and maintenance
loss of preload under real operating conditions

Once preload is reduced, vibration can accelerate rotational loosening. This can result in unstable joints, equipment damage and emergency maintenance.

For a technical explanation of the loosening mechanism, see:
Why Bolts Loosen And How HARDLOCK® Nuts Prevent It

Mining safety and reliability are also widely discussed by organizations such as NIOSH Mining safety and health research.

Real-World Mining Applications of HARDLOCK® Nuts

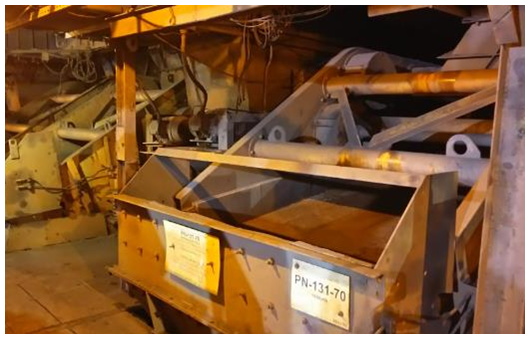

1. Mining Locking Nuts for Vibrating Screens

Vibrating screens are used to separate feed materials containing solids, crushed rocks and ores. They operate through continuous vibration generated by a flywheel, creating severe stress on bolted joints.

Typical fastening points include:

flywheel fastening
screen frame connections
motor and drive assemblies
support structures
exciter and vibration units

In these areas, conventional nuts often require periodic inspection and re-tightening.

HARDLOCK® nuts provide a mechanical locking solution designed to prevent rotational loosening under continuous vibration.

In one mining application, a vibrating screen installed with ordinary nuts required regular maintenance involving multiple engineers and repeated interventions. After replacing ordinary nuts with HARDLOCK® nuts, yearly maintenance work was reduced from 240 man-hours to 5 man-hours per machine.

The maintenance cost was reduced from USD 4,800 to USD 100 per year, representing a reduction of up to 98%.

Main size range: M16–M27

2. Mining Locking Nuts for Crushers and Crushing Equipment

CrCrushers operate with extreme impact, eccentric motion and continuous vibration. Fastening reliability is critical for maintaining machine stability and preventing damage to wear parts.

Typical applications include cone crushers, liner fastening, mantle and concave fixation, bowl connections, adjustment ring connections and structural joints.

Loose bolts in crusher assemblies can lead to liner movement, accelerated wear, reduced throughput and unplanned shutdowns.

HARDLOCK® nuts use a mechanical wedge-locking principle that prevents loosening even in high-impact mining environments.

3. Mining Locking Nuts for Breakers and Hydraulic Hammers

Breakers are exposed to repeated shock loads. Each impact transmits high dynamic force through the structure and fastening points.

Typical fastening challenges include bolt loosening under repeated impact, fatigue of conventional fastening systems, difficult field maintenance and high downtime cost.

For breaker applications, HARDLOCK® nuts help secure bolted joints where shock resistance and long-term reliability are required.

Main size range: M36–M48

4. Mining Locking Nuts for Conveyors, Grid Cars and Material Handling

Mining operations depend on reliable material movement. Conveyors, grid cars and transfer systems are exposed to vibration, impact from bulk material and abrasive dust.

Typical fastening points include conveyor structures, transfer chutes, skirt systems, grid cars, support brackets and bucket handling systems.

In these locations, maintenance access is often limited. Repeated re-tightening can become expensive and inefficient.

HARDLOCK® mining locking nuts help reduce re-tightening work and support stable fastening in high-vibration material handling systems.

Main size example: Grid car M16

Similar heavy-duty reliability challenges are discussed in:
Steel Plant Downtime Reduction: ROI of Anti-Loosening Fasteners

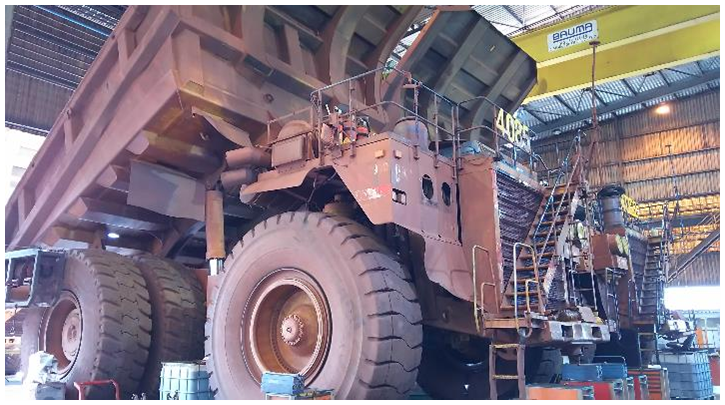

5. Off-Road Trucks and Heavy Mining Vehicles

Off-road trucks operate under vibration, shock, uneven terrain and heavy payload conditions. Fastening reliability is essential for safety and equipment availability.

Typical applications include:

suspension-related assemblies
chassis fastening
wheel and tire securing areas
support structures
heavy-duty bolted joints

In mobile mining equipment, loose fasteners may increase inspection frequency and create safety risks.

HARDLOCK® nuts are suitable for applications where vibration, shock and maintenance reduction are key requirements.

Main size example: 1″-14UNS

6. Mining Locking Nuts for Off-Road Trucks and Excavators

Off-road trucks operate under vibration, shock, uneven terrain and heavy payload conditions. Fastening reliability is essential for safety and equipment availability.

Typical applications include suspension-related assemblies, chassis fastening, wheel and tire securing areas, support structures and heavy-duty bolted joints.

In mobile mining equipment, loose fasteners may increase inspection frequency and create safety risks. HARDLOCK® nuts are suitable for applications where vibration, shock and maintenance reduction are key requirements.

Main size example for off-road truck applications: 1″-14UNS

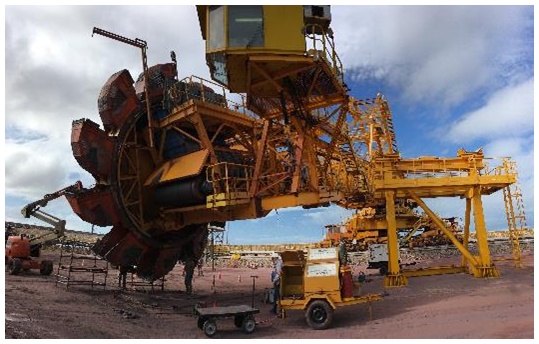

Large mining machines such as bucket wheel excavators operate continuously under heavy loads. Many fastening locations are difficult to access, making maintenance planning critical.

Main size examples for bucket wheel excavators: M24 and M45

Why Conventional Nuts Fail in Mining Applications

Many standard fastening methods rely primarily on friction or frequent maintenance. In mining environments, this is often not enough.

Spring washers may lose effectiveness under severe vibration and do not provide reliable long-term locking in critical joints.

Nylon insert nuts are limited by temperature, contamination and reusability. They may not be suitable for heavy mining applications.

Thread-locking adhesives can be affected by dust, oil, surface contamination and curing conditions. Inspection and disassembly can also become difficult.

Double nut systems depend heavily on correct installation technique. In real field conditions, results can vary.

For a wider comparison, see:
Bolt Locking Methods Explained

How HARDLOCK® Mining Locking Nuts Work

HARDLOCK® Nut uses a unique mechanical wedge-locking principle.

The system consists of two nuts:

a convex nut with an eccentrically formed boss
a concave nut with a matching recess

When tightened together, the wedge principle creates a strong transverse locking force against the bolt shaft. This mechanically prevents rotational loosening.

Unlike friction-based methods, HARDLOCK® does not rely only on surface friction or prevailing torque. It creates a mechanical locking effect designed for demanding vibration environments.

Learn more:
Best Locking Nut for Vibration: HARDLOCK® Nut Technology Explained

ROI Example: Mining Locking Nuts on a Vibrating Screen

A vibrating screen in a mining application was originally installed with ordinary nuts.

Before HARDLOCK®

48 ordinary nuts per machine
repeated maintenance required
5 engineers involved
4 hours per maintenance intervention
12 interventions per year
240 man-hours per year
annual maintenance cost: USD 4,800

After HARDLOCK®

48 HARDLOCK® nuts per machine
maintenance frequency reduced
5 engineers involved
1 hour per intervention
1 intervention per year
5 man-hours per year
annual maintenance cost: USD 100

Result

Maintenance cost was reduced by up to 98%.

This example shows why mining companies should evaluate fastening not only by purchase price, but by total maintenance cost and equipment availability.

When to Use Mining Locking Nuts

Consider HARDLOCK® mining locking nuts when your application involves:

continuous vibration
shock loads
repeated bolt loosening
high maintenance cost
difficult access
safety-critical joints
crushers and vibrating screens
conveyors and material handling systems
off-road mining vehicles
heavy earth-moving equipment

For applications where vibration resistance and maintenance reduction are critical, HARDLOCK® provides a proven mechanical anti-loosening solution.

The mining industry also has strong technical communities such as the Society for Mining, Metallurgy & Exploration, where reliability, safety and operational efficiency are key topics.

Related HARDLOCK® Articles

Explore more HARDLOCK® technical and application articles:

Conclusion: Reliable Mining Locking Nuts for Critical Equipment

Mining equipment operates under vibration, impact and harsh environmental conditions. Therefore, conventional nuts often require repeated inspection and re-tightening, especially in vibrating screens, crushers, conveyors and heavy machinery.

HARDLOCK® mining locking nuts provide a mechanical anti-loosening solution designed to secure bolted joints in demanding mining applications. In addition, they help reduce maintenance work and support long-term equipment reliability.

Ultimately, reducing bolt loosening can improve safety, equipment availability and total cost of ownership. For mining operators, this makes HARDLOCK® a practical fastening solution for vibration-critical machinery.

Looking to Improve Fastening Reliability in Mining Equipment?

Looking to reduce bolt loosening, maintenance time or unplanned downtime in mining equipment?

Contact HARDLOCK® experts for technical consultation, application-specific recommendations, sample selection, replacement evaluation, cost reduction analysis and fastening support for mining and heavy machinery projects.

HARDLOCK® – Secure fastening for vibration-critical mining applications.
